  EN1092-1 TYPE 02 FLANGE PN16
stampa
en1092-1 type 02 flange, loose flange, lapped flange
HYUPSHIN FLANGES
1. Standard: EN1092-1
2. Type:
Loose Flange, Lapped Flange (Flat Face)
3. Pressure:
PN16
4. Size:
DN15 - DN1000, larger Sizes available on request
5. Raw Material:
P245GH, P250GH, P265GH, C22.8, S235JR
6. Process:
Forged
7. Basic requirements for Material and Flange

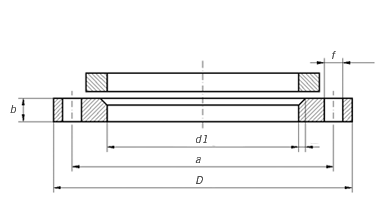

EN 1092-1 TYPE 02 PN16 LOOSE FLANGE
Rated Diameter Flange Screws Weight
(7,85 Kg/dm3)
d1 k D b e d2 Thread Bolt holes KG
15 25 65 95 14 3 14 M12 4 0,655
20 31 75 105 16 4 14 M12 4 0,913
25 38 85 115 16 4 14 M12 4 1,081
32 47 100 140 18 5 18 M16 4 1,781
40 53 110 150 18 5 18 M16 4 2,035
50 65 125 165 20 5 18 M16 4 2,668
65 81 145 185 20 6 18 M16 4 3,241
80 94 160 200 20 6 18 M16 8 3,512
100 120 180 220 22 6 18 M16 8 4,247
125 145 210 250 22 6 18 M16 8 5,258
150 174 240 285 24 6 22 M20 8 6,945
200 226 295 340 26 6 22 M20 12 9,383
250 281 355 405 29 8 26 M24 12 13,717
300 333 410 460 32 8 26 M24 12 18,213
350 365 470 520 35 8 26 M24 16 27,184
400 416 525 580 38 8 30 M27 16 34,789
450 467 585 640 42 8 30 M27 20 44,793
500 519 650 715 46 8 33 M30 20 62,227
600 622 770 840 55 8 36 M33 20 98,983
700 721 840 910 63 8 36 M33 24 107,32
800 824 950 1025 74 8 39 M36 24 152,44
900 926 1050 1125 82 8 39 M36 28 184,25
1000 1030 1170 1255 90 8 42 M39 28 257,09
Tutte le nostre flange rispettano le normative europee EN - italiane UNI - tedesche DIN - americane ANSI. Realizziamo flange piane - libere - per cartelle - a collarino - filettare - cieche I materiali impiegati sono: Acciaio al carbonio = ASTM A105 - C22,8 - RST37,2, Acciaio inossidabile = ASTM A182 F304 - F316L
Toutes nos brides respectent les normes européennes EN - italiennes UNI - allemandes DIN - américaines ANSI. Nous réalisons des brides plates - libres - en collet -filetées - pleines.Les matériaux employés sont: Acier au carbone : ASTM A 105 - C22,8 - RST37,2, Acier inoxydable : ASTM A 182 F304 - F316L
