  LOOSE FLANGE DIN 2642 PN10
stampa
din lapped flange, din loose flange, din2641, din2642, flange
HYUPSHIN FLANGES
1. Standard: DIN 2642, Lose Flansche
2. Type:
Loose Flange, Lapped Flange (Flat Face)
3. Pressure:
PN10
4. Size:
DN15 - DN1000, larger Sizes available on request
5. Raw Material:
C22.8, RSt37.2, S235JRG2, C21, A105
6. Process:
Forged
7. Basic requirements for Material and Flange

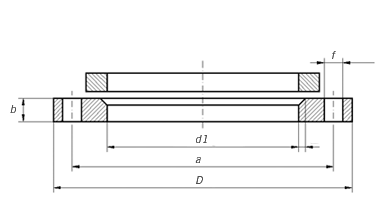

Germany standard flange DIN 2642 lapped flange; nominal pressure 10

Lose Flansche Vorschweißbördel Glatte Bunde DIN 2642 Nenndruck 10
Brides tournantes: pression nominale 10
Pipe Flange Screws Weight
(7,85 Kg/dm3)
Rated
Diameter
d1 D d6 b k e Holes Thread d2 Kg
ISO
Series 1
DIN
Series 2
15 - 20 95 22 14 65 3 4 M 12 14 0,689
21,3 - 24
20 - 25 105 28 14 75 3 4 M 12 14 0,806
26,9 - 30
25 - 30 115 33 16 85 4 4 M 12 14 1,11
33,7 - 36
32 - 38 140 42 16 100 4 4 M 16 18 1,64
42,4 - 46
40 - 44,5 150 50 16 110 4 4 M 16 18 1,86
48,3 - 54
50 - 57 165 62 16 125 5 4 M 16 18 2,2
60,3 - 65
65 76,1 - 185 81 16 145 5 4 M 16 18 2,62
80 88,9 - 200 94 18 160 5 8 M 16 18 3,32
100 - 108 220 113 18 180 5 8 M 16 18 3,67
114,3 - 119
125 - 133 250 138 18 210 5 8 M 16 18 4,54
139,7 - 145
150 - 159 285 164 18 240 5 8 M 20 22 5,6
168,3 - 173
200 219,1 - 340 225 20 295 5 8 M 20 22 7,46
250 - 267 395 273 22 350 5 12 M 20 22 10,3
273 - 279
300 323,9 - 445 329 26 400 5 12 M 20 22 14
350 355,6 - 505 362 28 460 6 16 M 20 22 18,5
- 368 374
400 406,4 - 565 413 32 515 6 16 M 24 26 25
- 419 426
(450) 457 - 615 467 38 565 6 20 M 24 26 30,6
500 508 - 670 517 38 620 6 20 M 24 26 37
600 610 - 780 618 44 725 7 20 M 27 30 56,3
700 711 - 895 721 50 840 7 24 M 27 30 80,4
800 813 - 1015 824 56 950 7 24 M 30 33 113,2
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696
