  DIN 2565 PN6 THREADED FLANGE
stampa
din threaded flange, din2565, din2566, flange
HYUPSHIN FLANGES
1. Standard: DIN 2565, Gewindeflansche
2. Type:
Threaded Flange, Screwed Flange (Raised Face)
3. Pressure:
PN6
4. Size:
DN15 - DN150, larger Sizes available on request
5. Raw Material:
C22.8, RSt37.2, S235JRG2, C21, A105
6. Process:
Forged
7. Basic requirements for Material and Flange

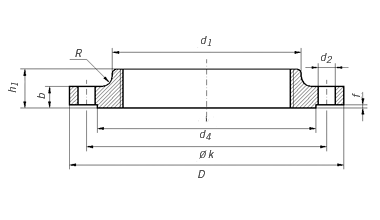

DIN 2565 PN 6 THREADED FLANGE SPECIFICATION
Rated
Diameter
  Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
d1 Thread D b k h1 d3 d4 f Holes Thread d2 Kg
15 21,3 R 1/2 80 12 55 20 30 40 2 4 M 10 11 0,373
20 26,9 R 3/4 90 14 65 24 40 50 2 4 M 10 11 0,59
25 33,7 R 1 100 14 75 24 50 60 2 4 M 10 11 0,743
32 42,4 R 1 1/4 120 14 90 26 60 70 2 4 M 12 14 1,05
40 48,3 R 1 1/2 130 14 100 26 70 80 3 4 M 12 14 1,2
50 60,3 R 2 140 14 110 28 80 90 3 4 M 12 14 1,37
65 76,1 R 2 1/2 160 14 130 32 100 110 3 4 M 12 14 1,92
80 88,9 R 3 190 16 150 34 110 128 3 4 M 16 18 2,82
100 114,3 R 4 210 16 170 38 130 148 3 4 M 16 18 3,19
125 139,7 R 5 240 18 200 40 160 178 3 8 M 16 18 4,47
150 165,1 R 6 265 18 225 44 185 202 3 8 M 16 18 5,3
NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696

Request a quote, JINAN HYUPSHIN FLANGES CO., LTD
